Mode |

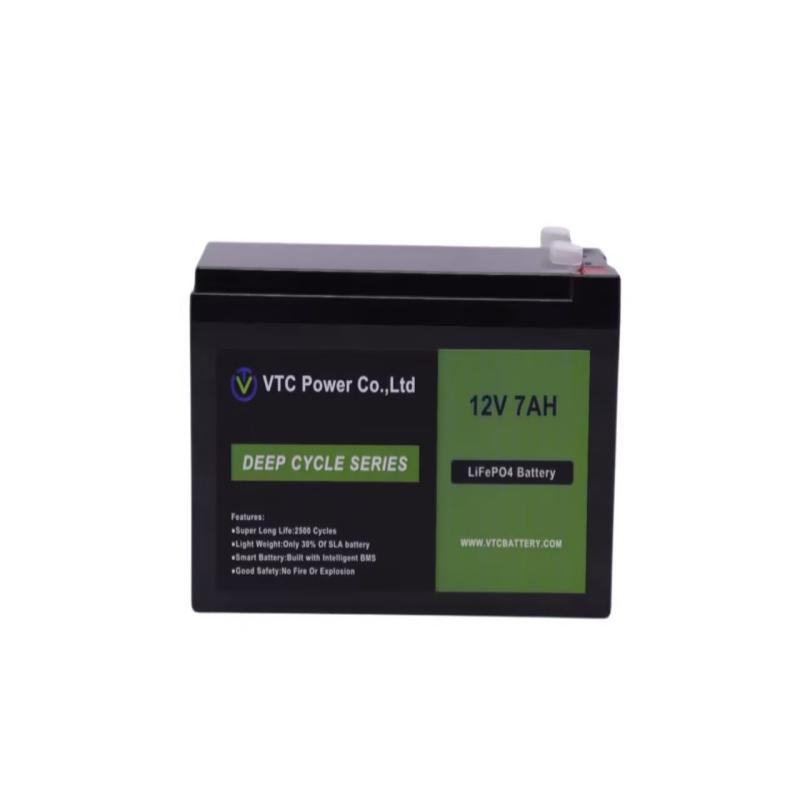

VTC-4F7 |
|
Battery Type |
Lifepo4 battery |
|
Battery Combination |
4S1P |
|
Case Numbers |
1 pc |
|
Nominal Characteristic |
|
|
Nominal Voltage |
12.8V |
|
Battery Capacity |
7Ah |
|
Nominal Energy Capacity |
89.6Wh |
|
Efficiency |
99% |
|
Electrical Specifications |
|
|
Discharge Cut-Off Voltage: |
10V |
|
Reconnect Voltage |
15.2V |
|
Recommended Charge Voltage |
14.6V |
|
Recommended Charge Current |
0.35-3.5A |
|
Maximum Charge Current |
7A |
|
Max continuous discharge current |
7A |
|
Peak Output Current |
14A |
|
Mechanical Specifications |
|
|
Net Weight |
1.0Kg |
|
Dimension |
151 x 65x 94/100mm |
|
Color |
Black |
|
Case materials |
ABS |
|
Enclosure Protection |
IP56 |
|
Operation Condition |
|
|
Operation Temperature |
-20-65℃ |
|
Recommended Temperature |
0-65℃ |
|
Operation Humidity |
60％±25% |
|
Storage Conditions |
-5~35℃ |
|
Compliances |
|
|
Certification |
CE/IEC/UN38.3 |
|
Warranty |
|
|
Warranty |
3 years |
|
Life design |
10+ years |
|
Cycle life |
|
|
0.2C at room temp |
6000+ times( 80% DOD) |
|
0.5C at room temp |
4000+ times( 80% DOD) |
|
1.0C at room temp |
2500+ times( 80% DOD) |
