Product Information

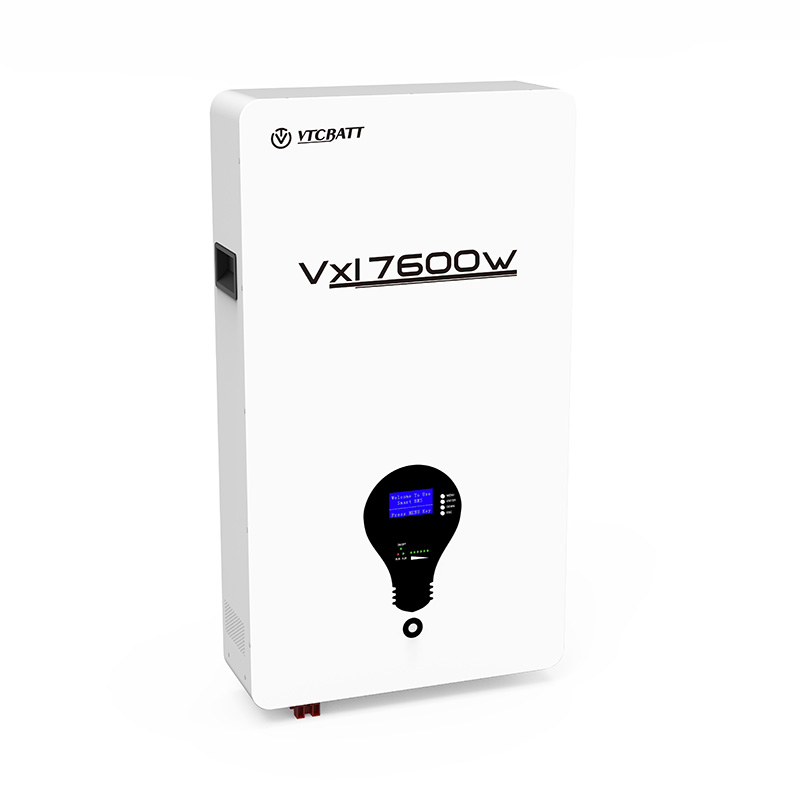

Vxl7600w 7.6Kwh 51.2V 150Ah Powerwall ESS Lifepo4 battery
Vxl7600w Technical Details:
| Mode |
Vxl7600w |
| Battery Type |
Lifepo4 battery |
| Battery Combination |
16S1P |
| Case Numbers |
1 pc |
| Mount type |
Powerwall |
| Nominal Characteristic |
| Nominal Voltage |
51.2V |
| Battery Capacity |
150Ah |
| Nominal Energy Capacity |
7.6KWh |
| Peak Output Current |
100A |
| Round trip Efficiency |
96%-99% |
| Electrical Specifications |
| Voltage Range |
40-58.4V |
| Max. Charging Current |
100A |
| Max. Discharging Current |
100A |
| Mechanical Specifications |
| Net Weight |
75.0kg |
| Dimension |
155mmX860mmX485mm |
| Color |
White |
| Cooling |
Nature |
| Communication Specifications |
| Communication Port |
RS485/RS232/CAN |
| Operation Condition |
| Operation Temperature |
-20-65℃ |
| Recommended Temperature |
0-65℃ |
| Operation Humidity |
60％±25% |
| Storage Conditions |
0~40℃ |
| Compliances |
| Certification |
CE/IEC/UN38.3 |
| Standards |
EN61000-6-1:2007 EN61000-6-3:2007+A1:2011 |
| Inverter Type |
Goodwe,Victron Energy,Growatt,Pylontech, Voltronics,Deye,Inhenergy etc |
| Warranty |
| Warranty |
3 years |
| Life design |
10+ years |
| Installation type |
| Installation type |
Wall mounted |
| Cycle life |
| 0.2C at room temp |
6000+ times( 80% DOD) |
| 0.5C at room temp |
4000+ times( 80% DOD) |
| 1.0C at room temp |
2500+ times( 80% DOD) |
Advantages:
Manufacturing Technology:
Declaration:VTC Power produce the
Vxl7600w 7.6Kwh 51.2V 150Ah Powerwall ESS Lifepo4 battery cell by ourselves and insist in using brand new and grade A cells only for safety and best battery pack performance.
Warning:Now lots of other competitors use recycled cells.Recycled cells can’t ensure the constancy of the cells and BMS effective management,which will put lots of safety issue and danger in household.
VTC Power Cell production process:
VTC Power Battery Pack Assemble process:
Matching Inverter:
Vxl7600w 7.6Kwh 51.2V 150Ah Powerwall ESS Lifepo4 Battery Matching multiple brand inverter via RS485/CAN communication protocol.Its RS232 communication protocol can support PC data reading of battery SOH,capacity and battery charge&discharge status.
Discharge&Charge Curve:
Project Cases:
6000+ families in Germany,Europe,South Africa,Australia choose the Vxl7600w 7.6Kwh 51.2V 150Ah Powerwall ESS Lifepo4 battery for their home power supply.
Package&Shipping:
